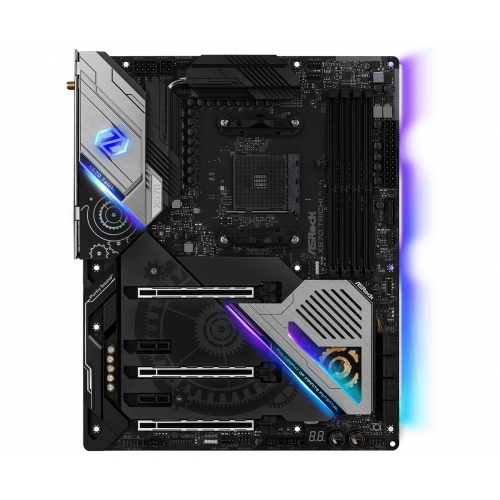

ASROCK X570 Taichi ATX MB

ASROCK X570 Taichi ATX MB
Gamintojas: ASROCK
Modelis: ASROCK X570 Taichi ATX MB
Apdovanojimo taškai:
Prieinamumas: Išparduota
Kaina: 339.99€
Be PVM: 280.98€
ASROCK X570 Taichi ATX MB
Audio Integrated YES
Expansion Ports PS/2
RJ-45
Audio jack(s)
Optical S/PDIF Out
HDMI
USB 3.2
USB 3.2 Type-A
USB 3.2 Type-C
Firewire Connection 0
Graphic Card Only if integrated in CPU
Highlights Intel® Gigabit LAN
ASRock Polychrome SYNC
Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
3 PCIe 4.0 x16, 2 PCIe 4.0 x1
3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
Supports DDR4 4666+ (OC)
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
Integrated Vga NO
Internal Connector 1 x Clear CMOS button
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Power Button with LED
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x SPI TPM header
1 x Reset Button with LED
1 x RGB LED Header
1 x AMD Fan LED Header
1 x AMD LED Fan USB Header
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x Addressable LED Header
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Dr. Debug with LED
1 x CPU Fan connector (4-pin)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15? Gold Audio Connector)
1 x Power LED and Speaker Header
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
Length (cm) 30.5
Link https://www.asrock.com/mb/AMD/X570%20Taichi/
Maximum Memory (gb) 128
Memory Bus DDR4-2933
DDR4-2667
DDR4-4266(OC)
DDR4-4400(OC)
DDR4-2400
DDR4-3600(OC)
DDR4-3733(OC)
DDR4-2133
DDR4-4133(OC)
DDR4-3800(OC)
DDR4-3866(OC)
DDR4-4000(OC)
DDR4-4666+(OC)
DDR4-3200(OC)
DDR4-3466(OC)
DDR4-4200(OC)
Memory Technology DDR4
Dual channel
Mini-pci Slots 0
Motherboard Chipset AMD X570
Multi Processor Support NO
Nic 10/100/1000
Parallel Ports 0
Pci Express 16x 3 (variuos configuration)
Pci Express 1x 2
Pci Express 4x 0
Pci Express 8x 0
Pci Slots 0
Product Description X570 TAICHI
Ps/2 Connectors 1
Raid YES
Raid-controller Raid 0, 1, 10
Sata 3 Gb/s 0
Sata 6 Gb/s 8
Sata Connectors 8
Serial-ports 0
Socket SOCKET AM4
Speaker Support 8 SPEAKERS
Supports Cpu Supports ASRock Hyper BCLK Engine II
14 Power Phase design
Capable of providing extra 300W for CPU
Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
Intersil Digital PWM
Total Memory Slots 4
Usb 2.0 0
Usb 3.0 0
Usb 3.1 0
Usb 3.2 8
Usb-ports 8
Width (cm) 24.4
