| Audio Integrated | YES |
| Expansion Ports | Audio jack(s) D-SUB DVI-D PS/2 RJ-45 USB 2.0 USB 3.0 HDMI |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | ASRock Super Alloy 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 1 PCIe 3.0 x16, 1 PCIe 2.0 x1 Realtek Gigabit LAN 6 USB 3.0 (2 Front, 4 Rear) Supports DDR4 3200+(OC) 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) Graphics Output:HDMI, DVI-D, D-Sub |
| Integrated Vga | NO |
| Internal Connector | 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x 4 pin 12V power connector 1 x Chassis Intrusion and Speaker Header 1 x Print Port Header 1 x 24 pin ATX Power Connector 1 x COM Port Header 1 x Front Panel Audio Connector 1 x TPM Header 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin) 1 x CPU Fan connector (4-pin) |
| Length (cm) | 23.1 |
| Link | http://www.asrock.com/mb/AMD/AB350M-HDV/index.asp |
| Maximum Memory (gb) | 32 GB |
| Memory Bus | DDR4-3200(OC)+ DDR4-2667 DDR4-2400 DDR4-2133 DDR4-2933(OC) |
| Memory Technology | DDR4 Dual channel |
| Mini-pci Slots | 0 |
| Motherboard Chipset | AMD B350 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 1 |
| Pci Express 1x | 1 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

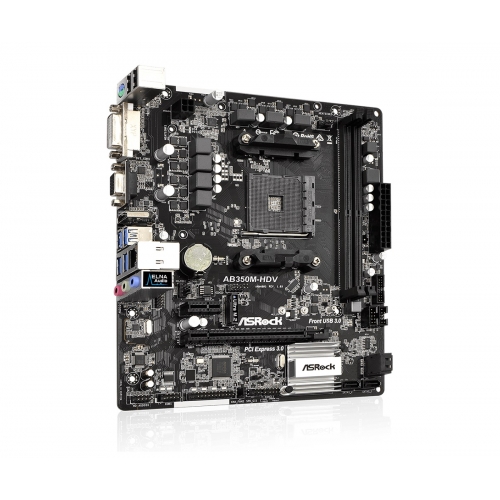

| Product Description | AB350M-HDV |
| Ps/2 Connectors | 1 |
| Raid | YES |
| Raid-controller | Raid 0, 1, 10 |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 4 |
| Sata Connectors | 4 |
| Serial-ports | 0 |
| Socket | SOCKET AM4 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | Supports CPU up to 65W Digi Power design 7 Power Phase design Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) |
| Total Memory Slots | 2 |
| Usb 2.0 | 2 |
| Usb 3.0 | 4 |
| Usb 3.1 | 0 |
| Usb-ports | 6 |
| Width (cm) | 20.6 |
