| Audio Integrated | YES |
| Expansion Ports | DVI-D PS/2 RJ-45 USB 2.0 HDMI Audio jack(s) Optical S/PDIF Out USB 3.1 |
| Firewire Connection | - |
| Graphic Card | Only if integrated in CPU |
| Highlights | Audio Boost 3: Reward your ears with studio grade sound quality Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font DDR4 Boost: Give your DDR4 memory a performance boost GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience GAMING LAN with LAN Protect, powered by Killer™: The best online gaming experience with lowest latency Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality SteelSeries Certified: Optimized for SteelSeries gaming gear Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket Supports DDR4-3600+(OC) Memory USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection Designed for overclocking: with OC Essentials and OC Engine 2 Game Boost: This one goes up to eleven; 11 levels of easy overclocking GAMING Hotkey: Assign macros, launch your favorite games or do real-time overclocking using a single button MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™ Twin Turbo M.2 64Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-C + Type-A combo + SATA 6Gb/s XSplit Gamecaster v2: 1 year free premium license to show off your skills and achievements to the world |
| Integrated Vga | YES |
| Internal Connector | 1 x 2-Digit Debug Code LED 1 x Slow mode switch 1 x TPM module connector 2 x 4-pin CPU fan connectors 1 x 8-pin ATX 12V power connector 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 3 x 4-pin system fan connectors 1 x 24-pin ATX main power connector 1 x Serial port connector 6 x SATA 6Gb/s connectors 1 x Front Panel Audio Connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x Front panel connectors 2 x SATAe connectors |
| Length (cm) | 30.5 |
| Link | http://www.msi.com/product/motherboard/Z170A-GAMING-M5.html#hero-specification |
| Maximum Memory (gb) | 64 GB |
| Memory Bus | DDR4-3200(OC) DDR4-2600(OC) DDR4-3000(OC) DDR4-2133 DDR4-2800(OC) DDR4-2400 DDR4-3600(OC) |
| Memory Technology | ECC Dual channel un-buffered DDR4 |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel Z170 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 3 (variuos configuration) |
| Pci Express 1x | 4 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

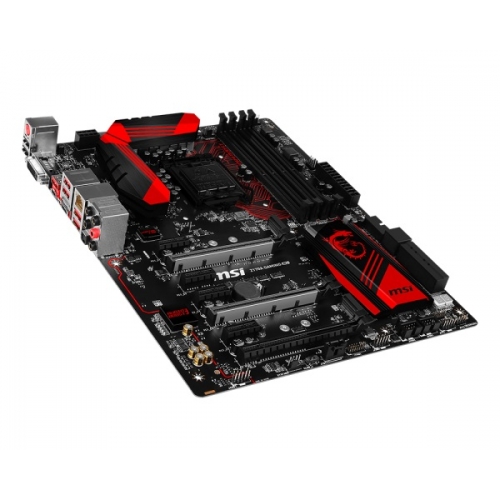

| Product Description | MSI Z170A GAMING M5 LGA1151 ATX DDR4 |
| Ps/2 Connectors | 1 |
| Raid | YES |
| Raid-controller | Raid 0, 1, 5, 10 |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 6 |
| Sata Connectors | 6 |
| Serial-ports | 0 |
| Socket | LGA1151 |
| Speaker Support | 8 SPEAKERS |
| Supports Cpu | Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| Total Memory Slots | 4 |
| Usb 2.0 | 2 |
| Usb 3.0 | 0 |
| Usb 3.1 | 6 |
| Usb-ports | 8 |
| Width (cm) | 24.4 |
