| Audio Integrated | YES |
| Expansion Ports | Audio jack(s) Optical S/PDIF Out PS/2 RJ-45 USB 2.0 USB 3.1 Type-A USB 3.1 Type-C |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect ASRock RGB LED Hyper BCLK Engine III Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket Dual Intel® Gigabit LAN 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3) NVIDIA® 4-Way SLI™, AMD 4-Way CrossFireX™ 13 Phase CPU Power Design + 2 Phase Memory Power Design, Dr. MOS 5 PCIe 3.0 x16, 1 PCIe 3.0 x4, 1 PCIe 2.0 x1 OC Formula Kit, Nick Shih's OC Profile Supports Quad Channel DDR4 4600+(OC) Memory 3 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 1 Rear Type-A) 6 USB 3.1 Gen1 (2 Front, 4 Rear) |
| Integrated Vga | NO |
| Internal Connector | 1 x Virtual RAID On CPU Header 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) 1 x BIOS B Select Jumper 1 x Post Status Checker (PSC) 1 x Voltage Control Header 1 x Right Angle Front Panel Audio Connector 2 x RGB LED Headers 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) 1 x Power LED and Speaker Header 1 x LN2 Mode Switch 1 x Menu Button 1 x PCIe ON/OFF Switch Rapid OC Buttons: +/- buttons to adjust OC frequency 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x Front Panel Audio Connector (15? Gold Audio Connector) 1 x Reset button 1 x Slow mode switch 1 x ReTry button 1 x Safe Boot button 1 x Dr. Debug with LED 1 x TPM Header 1 x CPU Fan connector (4-pin) 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142) 1 x Power Button with LED 1 x Thunderbolt™ AIC Connector (5-pin) |
| Length (cm) | 30.5 |
| Link | https://www.asrock.com/mb/Intel/X299%20OC%20Formula/index.asp |
| Maximum Memory (gb) | 64 |
| Memory Bus | DDR4-3200(OC) DDR4-3866(OC) DDR4-4000(OC) DDR4-4133(OC) DDR4-3600(OC) DDR4-3733(OC) DDR4-2933(OC) DDR4-3800(OC) DDR4-2400 DDR4-2133 DDR4-2800(OC) DDR4-2666 DDR4-4266(OC) DDR4-4400(OC) DDR4-4600+(OC) DDR4-4500(OC) |
| Memory Technology | DDR4 Dual channel |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel X299 |
| Multi Processor Support | NO |
| Nic | 2 x 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 5 (variuos configuration) |
| Pci Express 1x | 1 |
| Pci Express 4x | 1 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

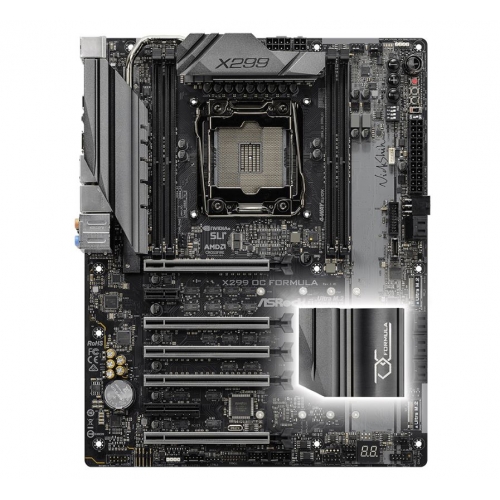

| Product Description | ASROCK X299 OC Formula LGA 2066 |
| Ps/2 Connectors | 1 |
| Raid | YES |
| Raid-controller | Raid 0, 1, 5, 10 |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 8 |
| Sata Connectors | 8 |
| Serial-ports | 0 |
| Socket | LGA2066 |
| Speaker Support | 8 SPEAKERS |
| Supports Cpu | Supports Intel® Turbo Boost Max Technology 3.0 Supports ASRock Hyper BCLK Engine III 13 Power Phase design Digi Power design Supports Intel® Core™ X-Series Processor for the LGA 2066 Socket |
| Total Memory Slots | 4 |
| Usb 2.0 | 2 |
| Usb 3.0 | 0 |
| Usb 3.1 | 6 |
| Usb-ports | 8 |
| Width (cm) | 24.4 |
