| Audio Integrated | YES |
| Expansion Ports | DVI-D PS/2 RJ-45 USB 2.0 HDMI D-SUB USB 3.1 Type-A USB 3.1 Type-C Audio jack(s) USB 3.1 |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3) Graphics Output Options: HDMI, DVI-D, D-Sub 10 Power Phase design 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps Supports 8th Generation Intel® Core™ Processors (Socket 1151) 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) 2 USB 3.1 Gen2 (Rear Type-A+C), 4 USB 3.1 Gen1 (2 Front, 2 Rear) Supports DDR4 2666 Intel® Gigabit LAN AMD Quad CrossFireX™ |
| Integrated Vga | NO |
| Internal Connector | 1 x Thunderbolt™ AIC Connector (5-pin) 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) 1 x Power LED and Speaker Header 1 x 24 pin ATX Power Connector 1 x COM Port Header 1 x Front Panel Audio Connector 1 x TPM Header 1 x CPU Fan connector (4-pin) 1 x 8 pin 12V power connector |
| Length (cm) | 30.5 |
| Link | https://www.asrock.com/mb/Intel/B360%20Pro4/index.asp |
| Maximum Memory (gb) | 64 |
| Memory Bus | DDR4-2666 DDR4-2133 DDR4-2400 |
| Memory Technology | DDR4 Dual channel |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel B360 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 2 |
| Pci Express 1x | 3 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

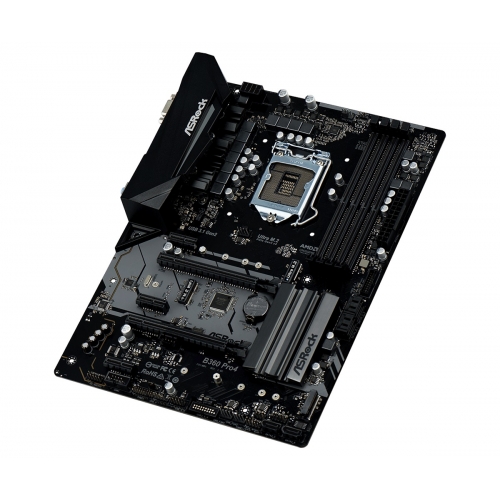

| Product Description | B360 PRO4 |
| Ps/2 Connectors | 1 |
| Raid | NO |
| Raid-controller | - |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 6 |
| Sata Connectors | 6 |
| Serial-ports | 0 |
| Socket | LGA1151 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | Digi Power design Supports 8th Generation Intel® Core™ Processors (Socket 1151) Supports Intel® Turbo Boost 2.0 Technology 10 Power Phase design Supports CPU up to 95W |
| Total Memory Slots | 4 |
| Usb 2.0 | 2 |
| Usb 3.0 | 0 |
| Usb 3.1 | 4 |
| Usb-ports | 6 |
| Width (cm) | 22.4 |
