| Audio Integrated | YES |
| Expansion Ports | HDMI Audio jack(s) D-SUB DVI-D PS/2 RJ-45 USB 2.0 USB 3.1 Type-A USB 3.1 Type-C |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | EZ Debug LED: Easiest way to troubleshoot Click BIOS: Secure and Reliable UEFI BIOS solution Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience Double ESD Protection: Double layer grounding motherboard mounting holes Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C Supports DDR4-2400 Memory Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready X-Boost: Great tool to boost your USB & Storage performance Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency Supports 7th / 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket DDR4 Boost: Give your DDR4 memory a performance boost M.2 Genie: Setting up RAID for M.2 much easier and faster |
| Integrated Vga | NO |
| Internal Connector | 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) 1 x 8-pin ATX 12V power connector 1 x 24-pin ATX main power connector 1 x Serial port connector 6 x SATA 6Gb/s connectors 1 x 4-pin CPU fan connector 1 x Front Panel Audio Connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Parallel port connector 1 x TPM module connector 2 x Front panel connectors 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x TBT connector 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) |
| Length (cm) | 30.4 |
| Link | https://www.msi.com/Motherboard/H270-PC-MATE.html#productFeature-section |
| Maximum Memory (gb) | 64 GB |
| Memory Bus | DDR4-2133 DDR4-2400 |
| Memory Technology | DDR4 Dual channel |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel H270 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 2 x PCIe x16 slots (x16/x4) |
| Pci Express 1x | 3 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 1 |

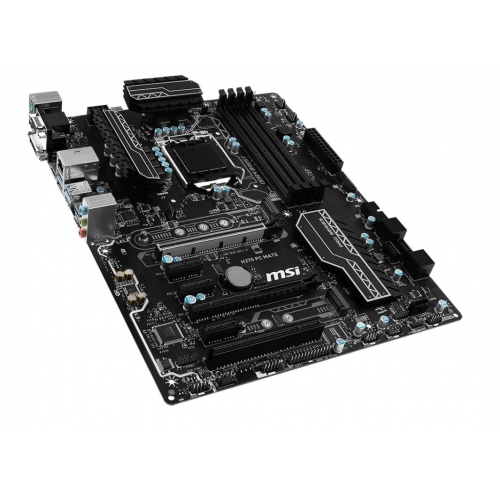

| Product Description | MSI H270 PC MATE |
| Ps/2 Connectors | 1 |
| Raid | NO |
| Raid-controller | - |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 6 |
| Sata Connectors | 6 |
| Serial-ports | 0 |
| Socket | LGA1151 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| Total Memory Slots | 4 |
| Usb 2.0 | 2 |
| Usb 3.0 | 0 |
| Usb 3.1 | 6 |
| Usb-ports | 8 |
| Width (cm) | 24.3 |
