| Audio Integrated | YES |
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Expansion Ports | DVI-D PS/2 RJ-45 USB 2.0 USB 3.0 D-SUB Audio jack(s) HDMI |
| Firewire Connection | 0 |
| Graphic Card | Only if integrated in CPU |
| Highlights | Epic gaming audio with LED-illuminated shielding Fan Xpert: Active Quiet & Cool 5X Protection II – Advanced hardware safeguards for all-around protection Lightning-fast M.2 support DDR4 memory compatibility Media-acclaimed UEFI BIOS with EZ Flash 3 |
| Integrated Vga | NO |
| Internal Connector | 1 x M.2 Socket 3 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x S/PDIF out header(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x System panel connector 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x Clear CMOS jumper(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Front panel audio connector(s) (AAFP) |
| Length (cm) | 22.6 |
| Link | http://www.asus.com/Motherboards/H110M-A-M-2/ |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Maximum Memory (gb) | 32 GB |
| Memory Bus | DDR4-2133 |
| Memory Technology | un-buffered DDR4 non-ECC |
| Mini-pci Slots | 0 |
| Motherboard Chipset | Intel H110 |
| Multi Processor Support | NO |
| Nic | 10/100/1000 |
| Parallel Ports | 0 |
| Pci Express 16x | 1 |
| Pci Express 1x | 2 |
| Pci Express 4x | 0 |
| Pci Express 8x | 0 |
| Pci Slots | 0 |

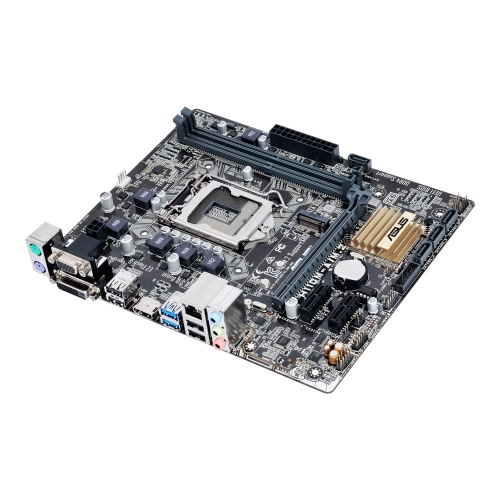

| Product Description | ASUS Mainboard H110M-A/M.2 LGA1151 mATX |
| Ps/2 Connectors | 2 |
| Raid | NO |
| Raid-controller | - |
| Sata 3 Gb/s | 0 |
| Sata 6 Gb/s | 4 |
| Sata Connectors | 4 |
| Serial-ports | 0 |
| Socket | LGA1151 |
| Speaker Support | 5 SPEAKERS |
| Supports Cpu | Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Total Memory Slots | 2 |
| Usb 2.0 | 4 |
| Usb 3.0 | 2 |
| Usb 3.1 | 0 |
| Usb-ports | 6 |
| Width (cm) | 18.5 |
